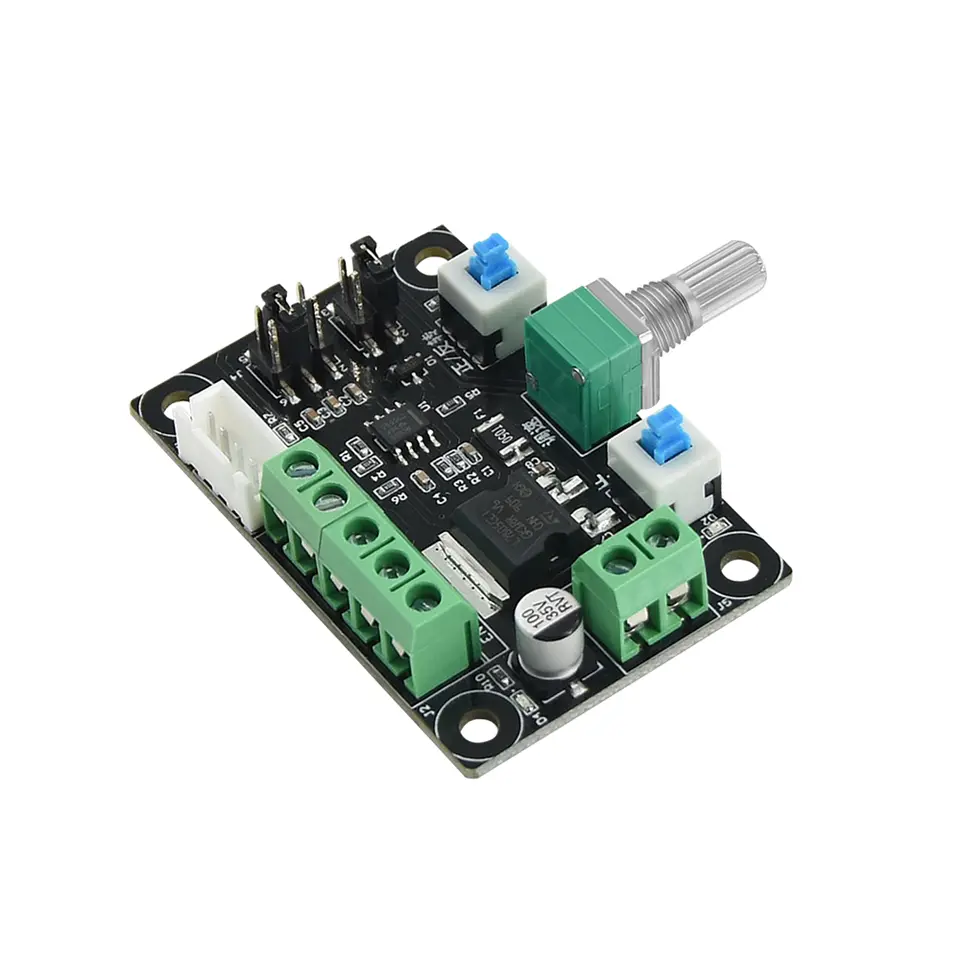

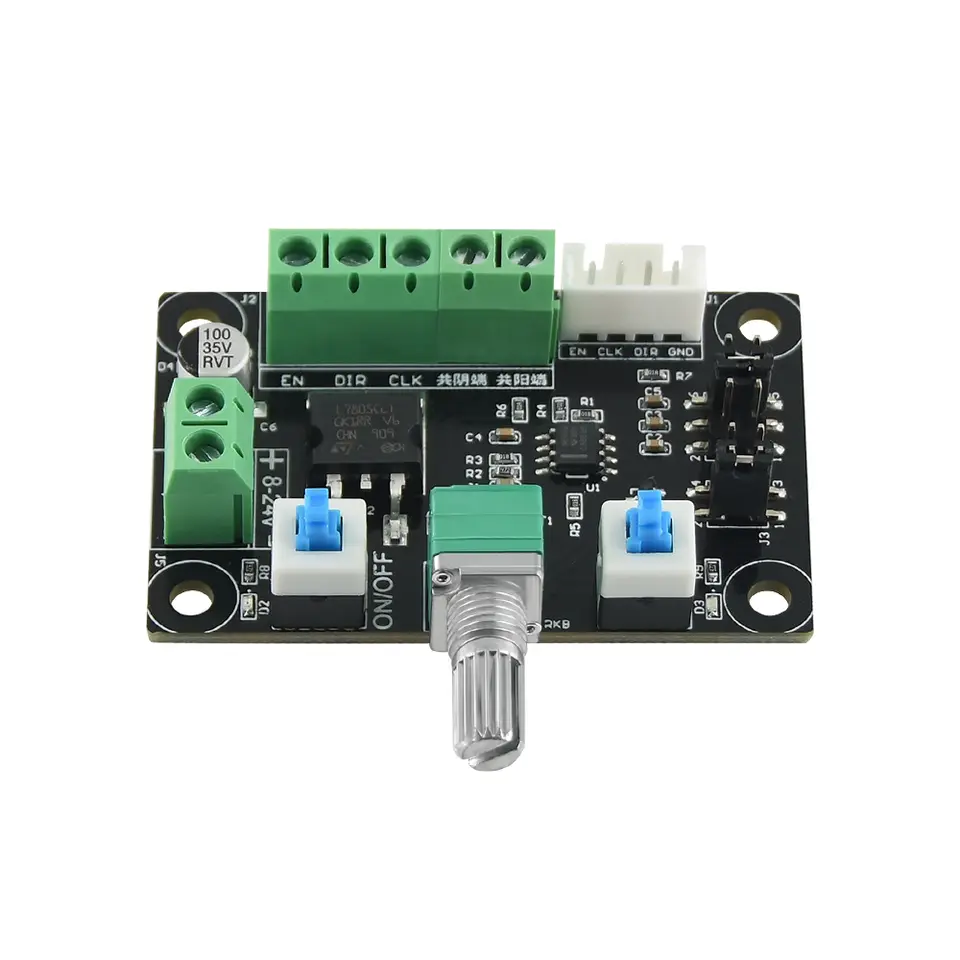

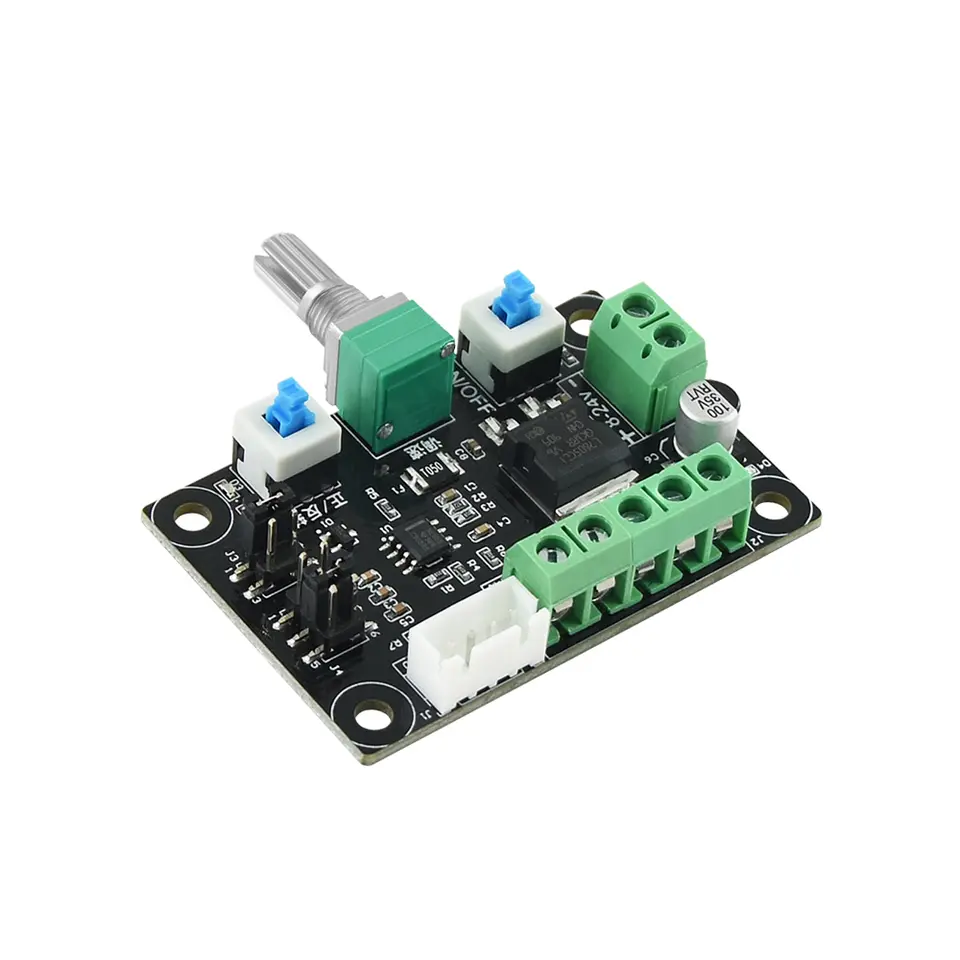

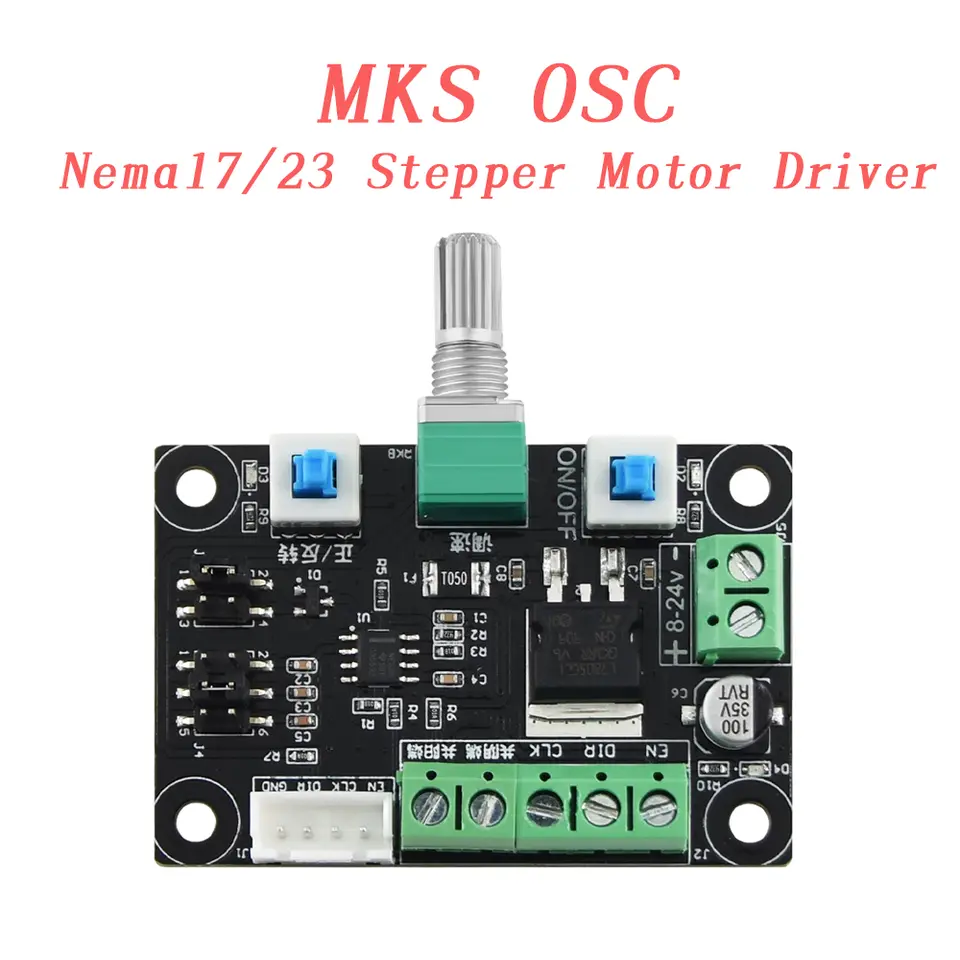

MKS OSC Pulse/PWM Signal Generator for Stepper Drivers, Speed and Direction Control

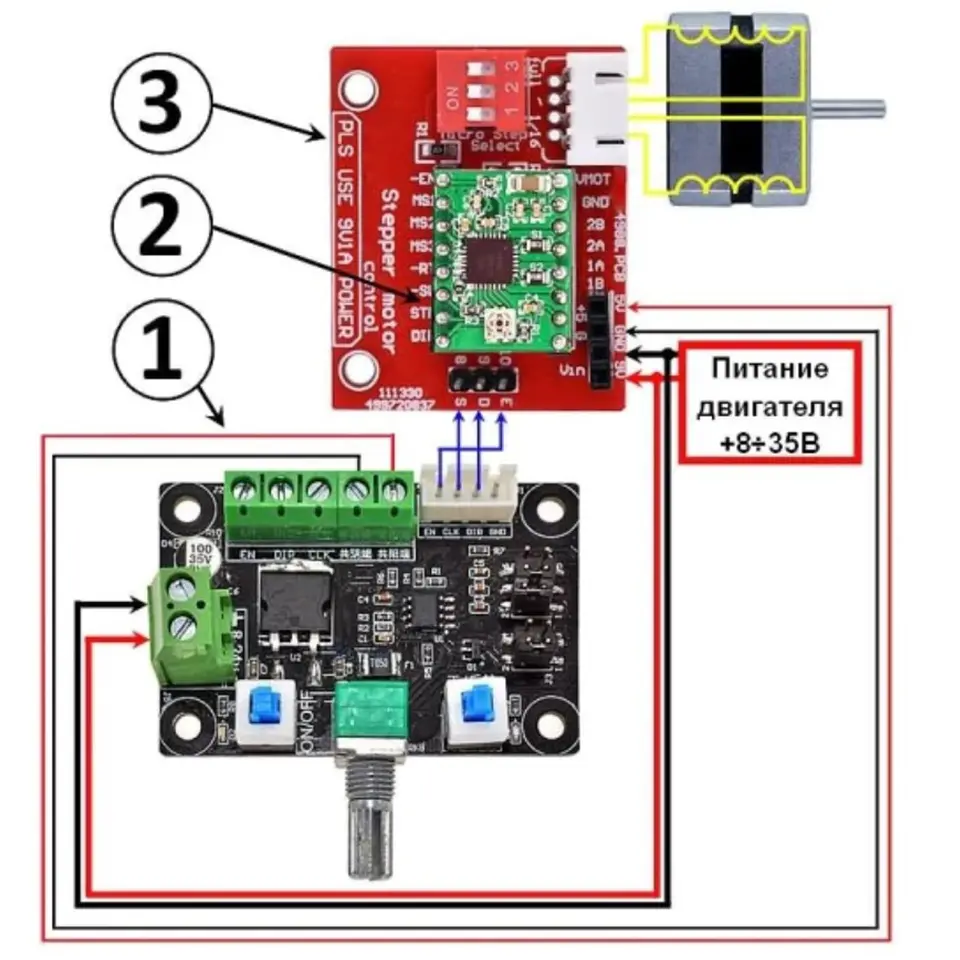

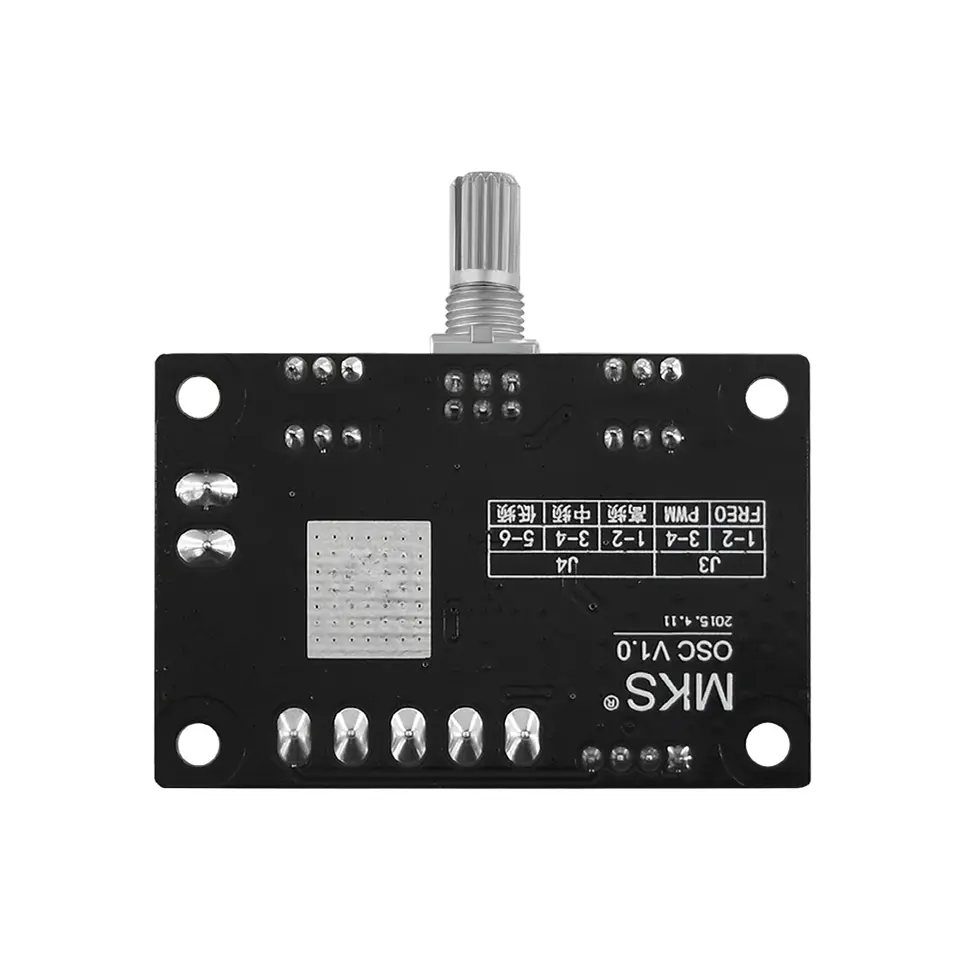

Nema17/23 Stepper Motor Driver MKS OSC PWM Pulse Signal Generator Module Motor Speed Frequency Direction Control Regulator Features: 1.this module is a pulse generation module, supply the control signal to stepper driver. To control the stepper motor, it must be equipped with a drive. 2.this simple controller + stepper motor + stepper motor + DC power supply can be composed of a simple set of control platform. 3.the controller has high 5.4k-160khz, middle 540-16.6khz, low 80-2.4khz total of 3 kinds of low frequency signal can be used to select the jumper. 4.can produce pulse signal, can also produce PWM signal, can choose the jumper. 5.the frequency of measurement: PUL and common cathode end. Different stepper driver may mark different name EN=ENA=FREE Enable PUL=PULS=CLK Pulse DIR=CW=CWW Direction Common anode Connection method (B) EN+ PUL+ DIR+ connect together to com+. EN- connect EN PUL- connect CLK DIR- connect DIR Instructions(thanks NSA): Shipping List: 1pcs • MKS OSC Overview: MKS OSC is a pulse generating module which can supply pwm signal as you need.MKS OSC + motor driver + motor + DC power supply = Easy control platform Parameter: Frequency Range:5.4k-160khz,540-16.6khz,80-2.4khz Signal type:pwm/pulse Direction:clockwise/anticlockwise Voltage:8v-24v Size: Wiring: Wiring instructions: Different stepping motor driver different port sign, but same functionEN=ENA=FREE enablePUL=PULS=CLK pulseDIR=CW=CWW direction common anode connection (connect with B)EN+ PUL+ DIR+ all link together to common anode portEN- connect to ENPUL- connect to CLKDIR- connect to DIR common cathode connection (connect with B)EN- PUL- DIR- all link together to common cathode portEN+ connect to ENPUL+ connect to CLKDIR+ connect to DIR Use the drivers that Makerbase designs, can directly connect to A white card port (common cathode connection ).
