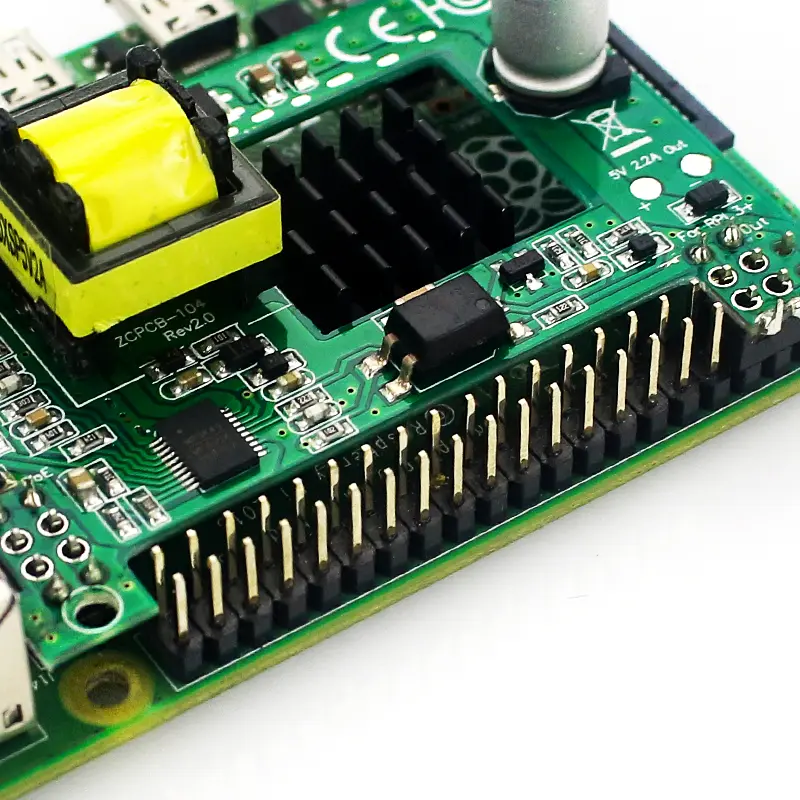

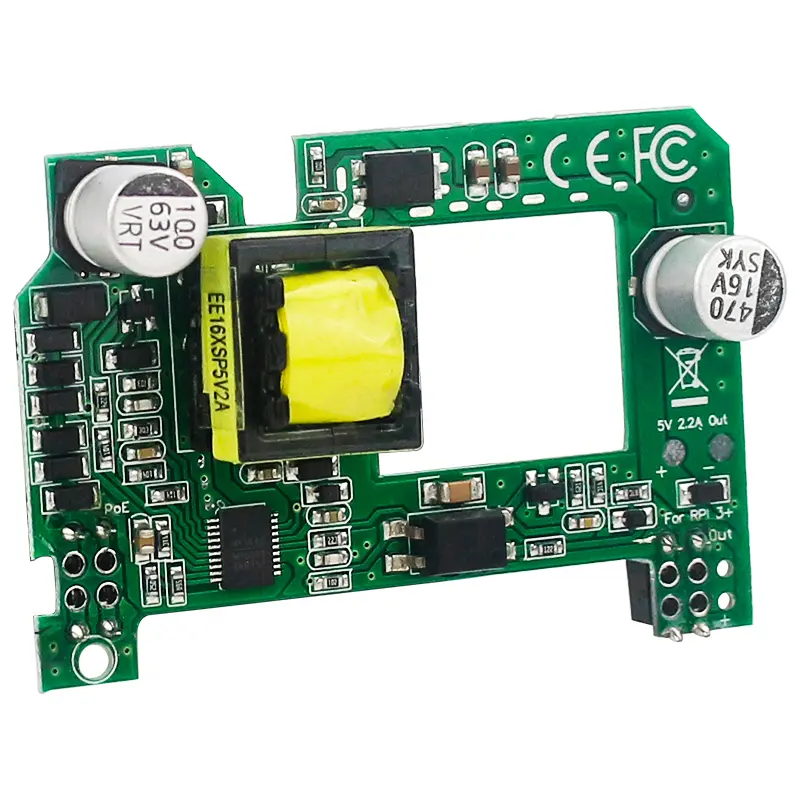

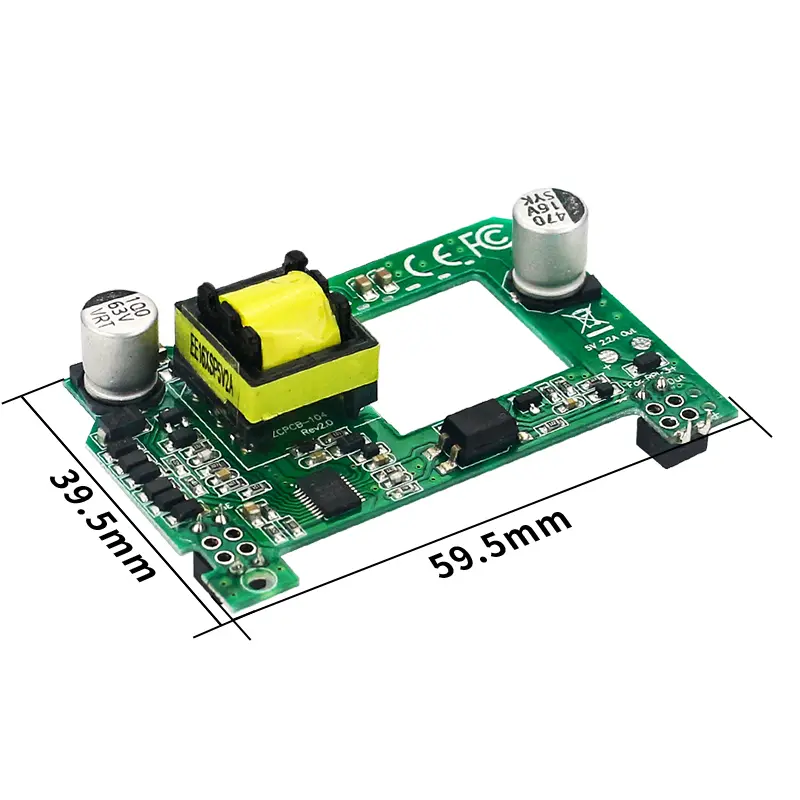

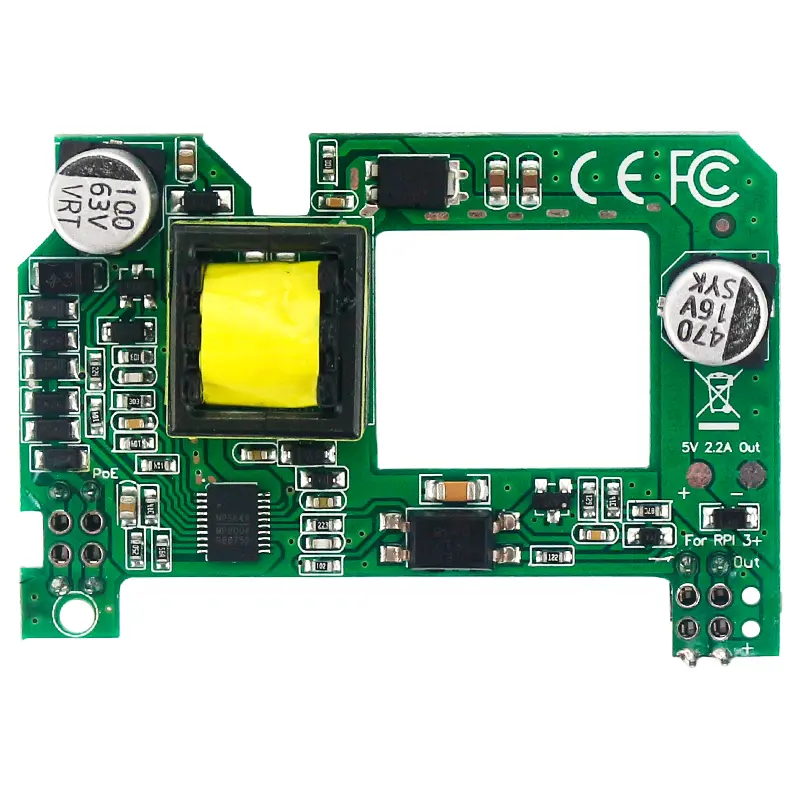

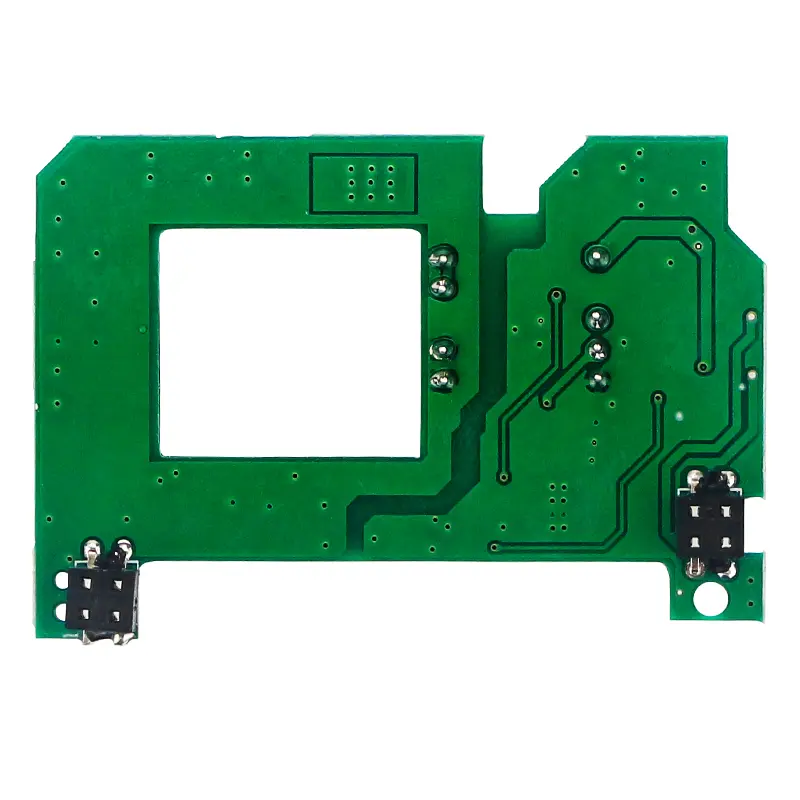

Raspberry Pi 4B POE HAT 5V 2A Active Power Over Adapter Ethernet Deliver Power POE Module for Raspberry Pi 4 Model B 3B+ 3B

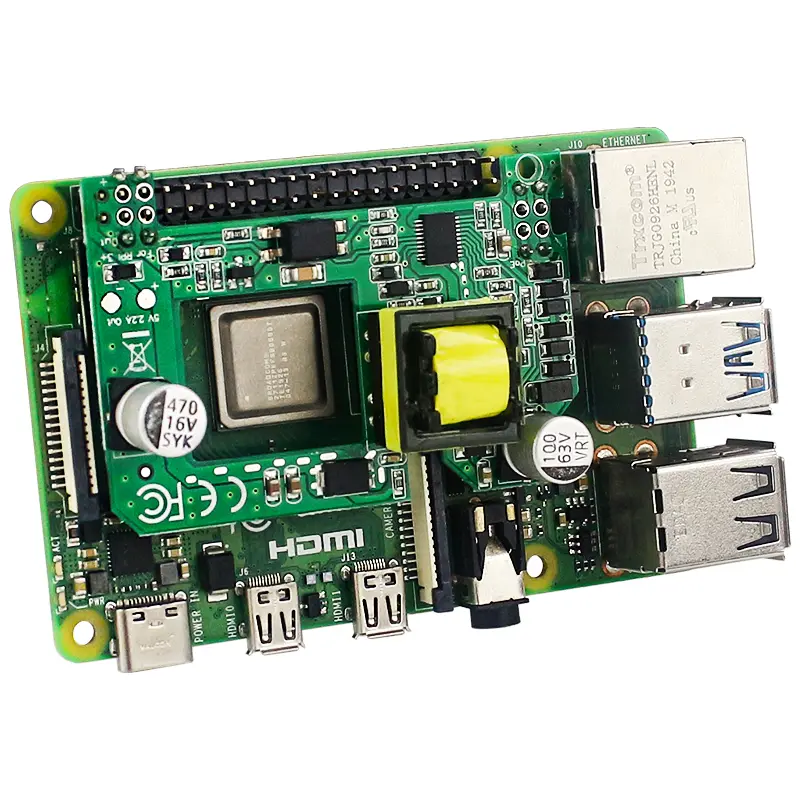

Raspberry Pi 4B POE Hat PCB Board 5V 2A Active Power Over Ethernet Deliver Power POE Module for Raspberry Pi 4 Model B 3B+ 3B Introduction: This PoE-World device provides an enfficient solution for delivering power to a Raspberry Pi 3B+ or 4 over 328ft of network cable. This device allows power to be carried on 10/100/1000 networks with either 802.3af or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable. Intended for use with Cisco or similar PoE switches - this active PoE solution negotiates with the switch to activate power and provide it to the Pi. It is a compact and cost effective power solution. The PoE switch supplies 48 or 56 volts DC at the source location. The higher DC voltage means the current is reduced by a factor of 9, and then carried with less loss over the cable. This PoE to 5 volt converter allows you to operate the Pi up to 328ft or 100 meters from a power source. The form factor is ideal for a Pi case - especially the CanaKit Premium case. The connector pins are available for GPIO and serial use. There is room for a large heat sink, and the output power is completely regulated and stable, with much less noise than the Raspberry Pi hat. The 10 watts is plenty of power for your applications. Specificatie: Power and data source input: RJ 45 female connector on Pi 3B+ or Pi 4 Isolated Data to powered device: A14 pains are sactive for data Power input Pins: 1&2 and 386- either polarity 802. 3af (mode A or mode B) 4&5+ plus, 7&8- minus 802. 3af das Class3 - 12.95 watts ma Input valtage Range:From 44to 57 volts Input Current at 48v:265 ma input delivers 2 amps out Output Vltage Max load (5v10w):5v+2%at 2 amps 10 watts Operating Temperature: 0C ~ 50rC Size: 65x 39x 11 mm (height from topof Pipins) Isolation: 3000 volts isolation from POE side to DC output Note: The Raspberry Pi itself does not support POE power supply, and its data and electrical power must be input separately. 802.3at/af standard POE is connected to this product, and this product is connected to Raspberry Pi, and then your Raspberry Pi can work normally. Package List: 1 × POE Module ( Not include the Raspberry Pi Board )
