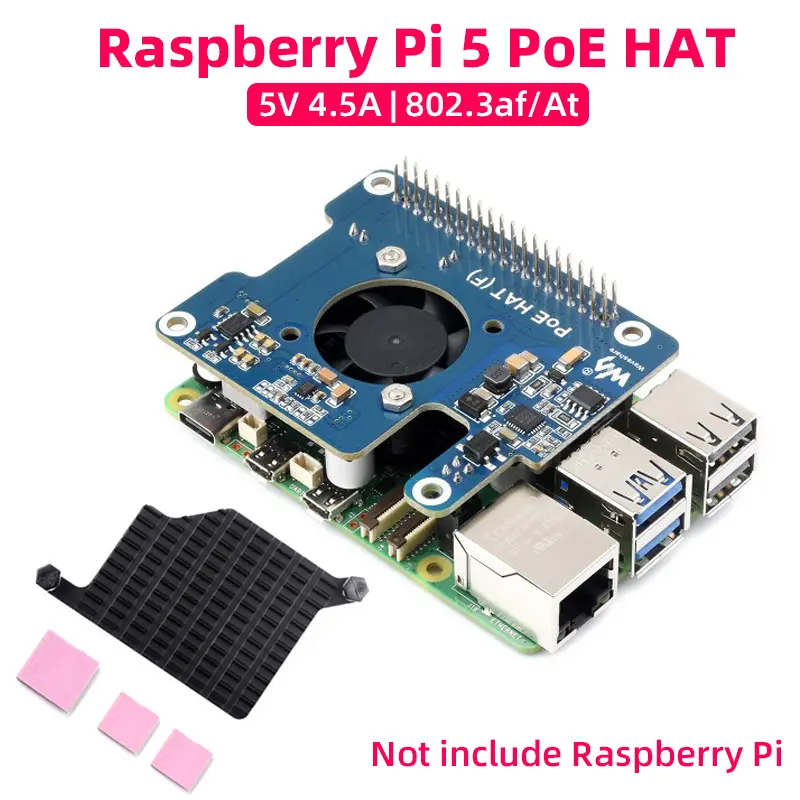

PoE HAT (F) for Raspberry Pi 5, 802.3af/at, Cooling Fan and Metal Heatsink, 5V and 12V Outputs

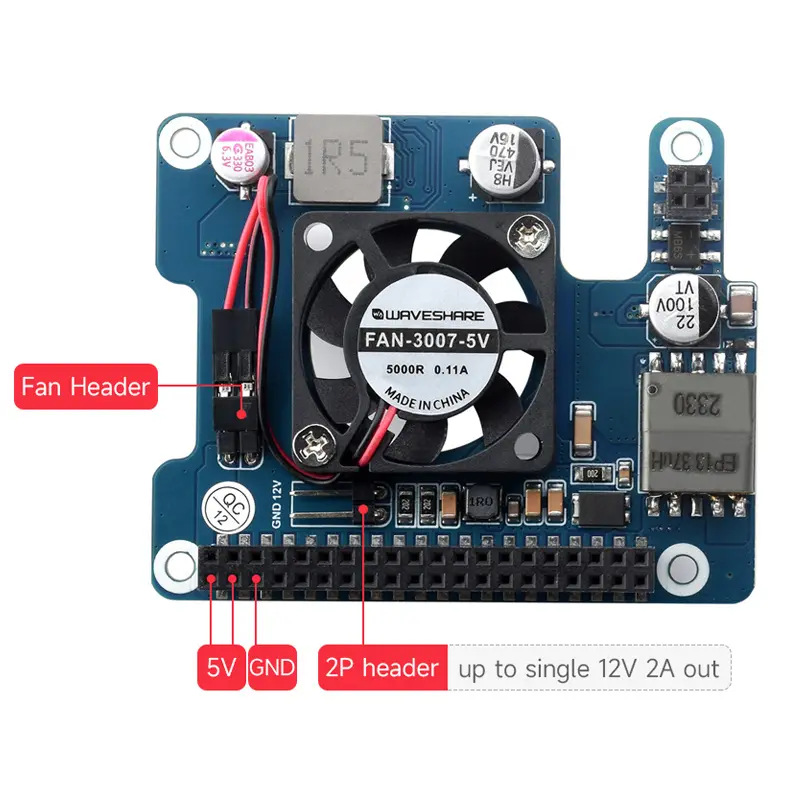

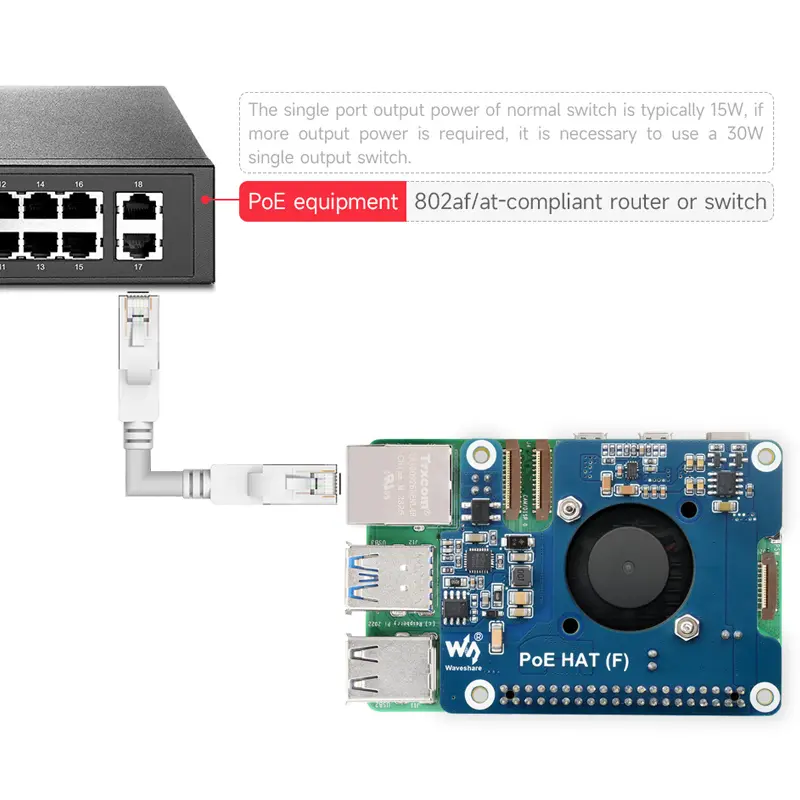

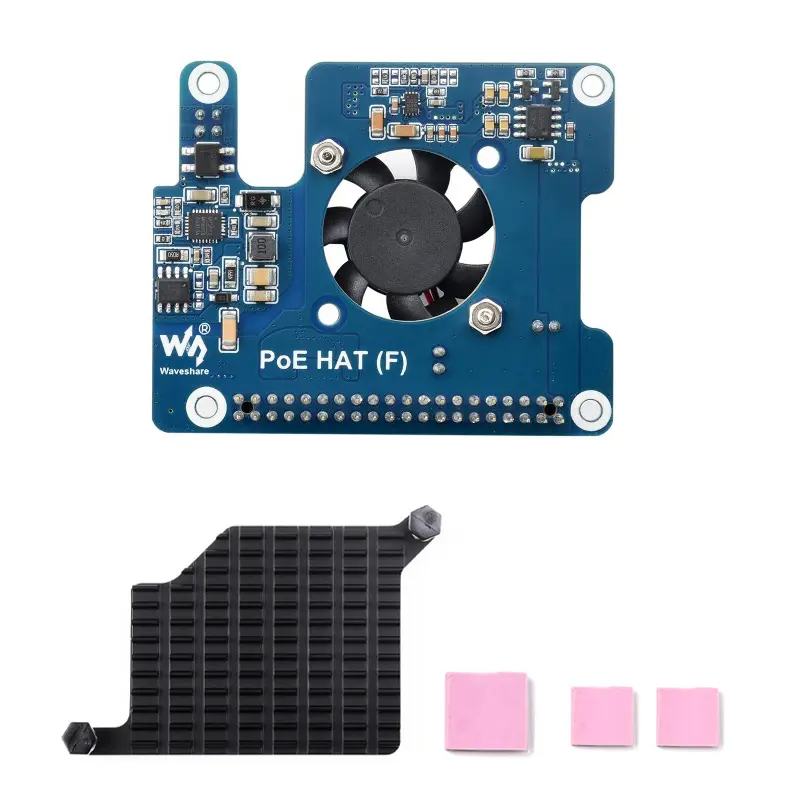

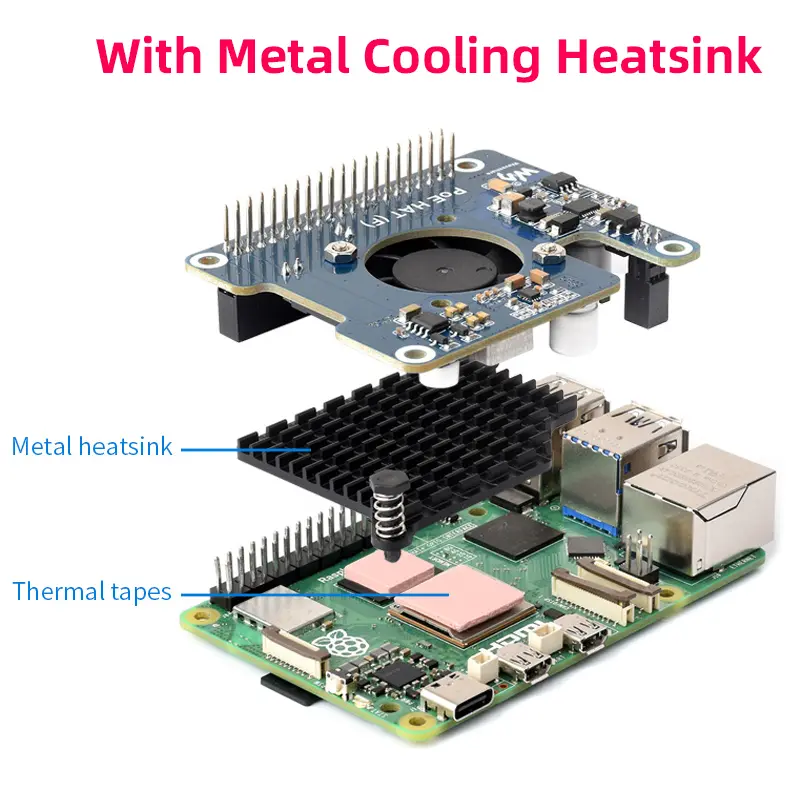

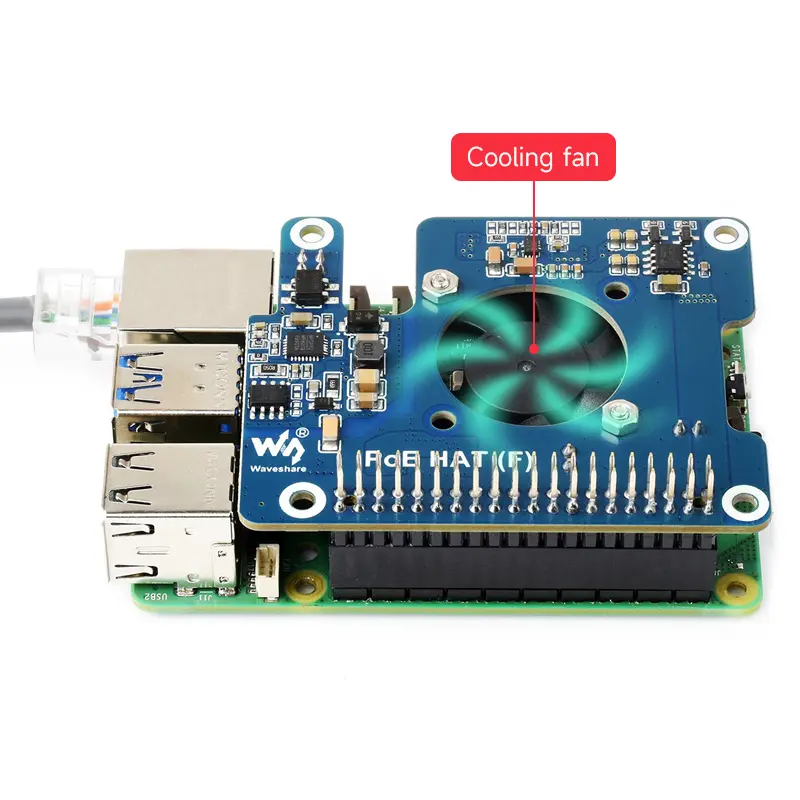

Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/At Network Standard POE HAT For Raspberry Pi 5 Power Over Ethernet HAT For Raspberry Pi 5, Supports 802.3af/at Network Standard 12V And 5V Power Outputs To Support More Peripherals Features At A Glance The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant Fully isolated switched-mode power supply (SMPS) Onboard high speed active cooling fan, with metal heatsink, better heat dissipation Specifications POE POWER INPUT 37V ~ 57V DC in POWER OUTPUT GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) DIMENSIONS 56.5 × 70.0mm NETWORK STANDARD IEEE 802.3af/at PoE Suitable For Raspberry Pi 5 Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs Power Over Ethernet Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable • for reference only, the Raspberry Pi 5 and switch are NOT included. Onboard 5V & 12V Header Outputs 5V Header Provides Up To 4.5A Output (MAX 25W For 12V+5V Total Output Power) Be Able To Power Extra Devices While Providing Stable Power To Raspberry Pi Active Cooling Fan Accelerate Cooling Effect, More Stable Performance Onboard MP8759GD Buck Chip Incorporates Original Voltage Buck Chip Providing Up To 5A Under Sufficient Heat Dissipation Condition How To Install Attach The Thermal Tapes First, Then Install Metal Heatsink And Fix The PoE HAT • for reference only, please refer to the Package Content for detailed part list Product Show Outline Dimensions Resources & Services WIKI: www.waveshare.com/wiki/PoE_HAT_(F) • Resources for different product may vary, please check the wiki page to confirm the actually provided resources. Packing List PoE HAT (F) x1 Metal heatsink x1 Thermal tape (3PCS) x1 Weight: 0.056 kg
