Brand: WitMotion

WitMotion WT53R ToF Laser Distance Sensor, VL53L1X, up to 400cm, TTL or RS485

Name: WitMotion WT53R ToF Laser Distance Sensor, VL53L1X, up to 400cm, TTL or RS485
Brand: WitMotion
SKU: AE-1005003096890173-12000057914269021
Price: 27.27 CAD
Availability: InStock

$27.27

Est. delivery 7–18 days

Shipping calculated at checkout

In stock

Supplier stock is confirmed when your order is processed.

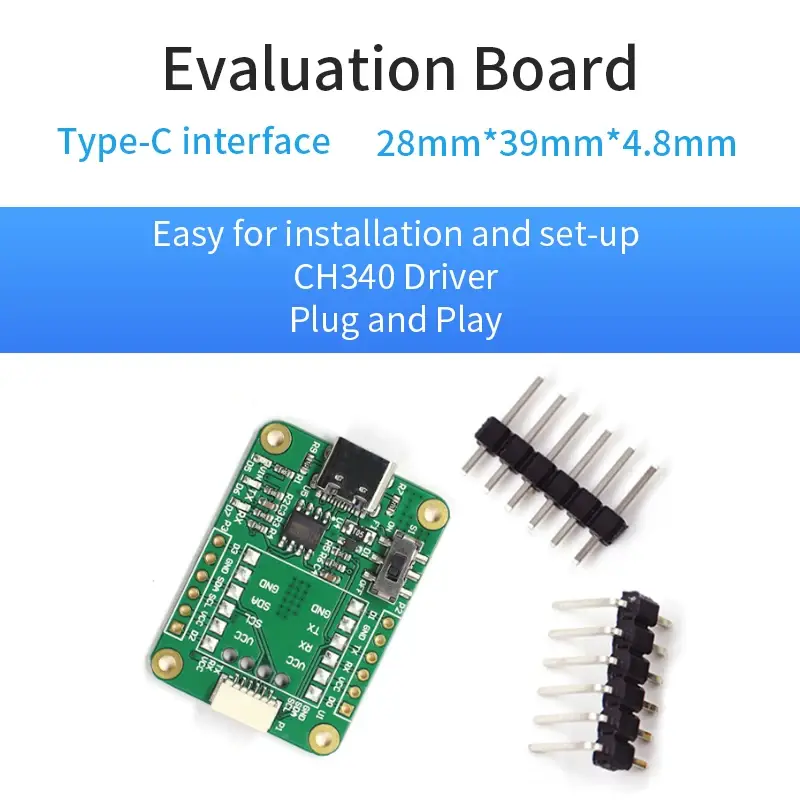

Option: Type-C Test Board

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Type	Acceleration Sensor
Supply Voltage	5V-36V

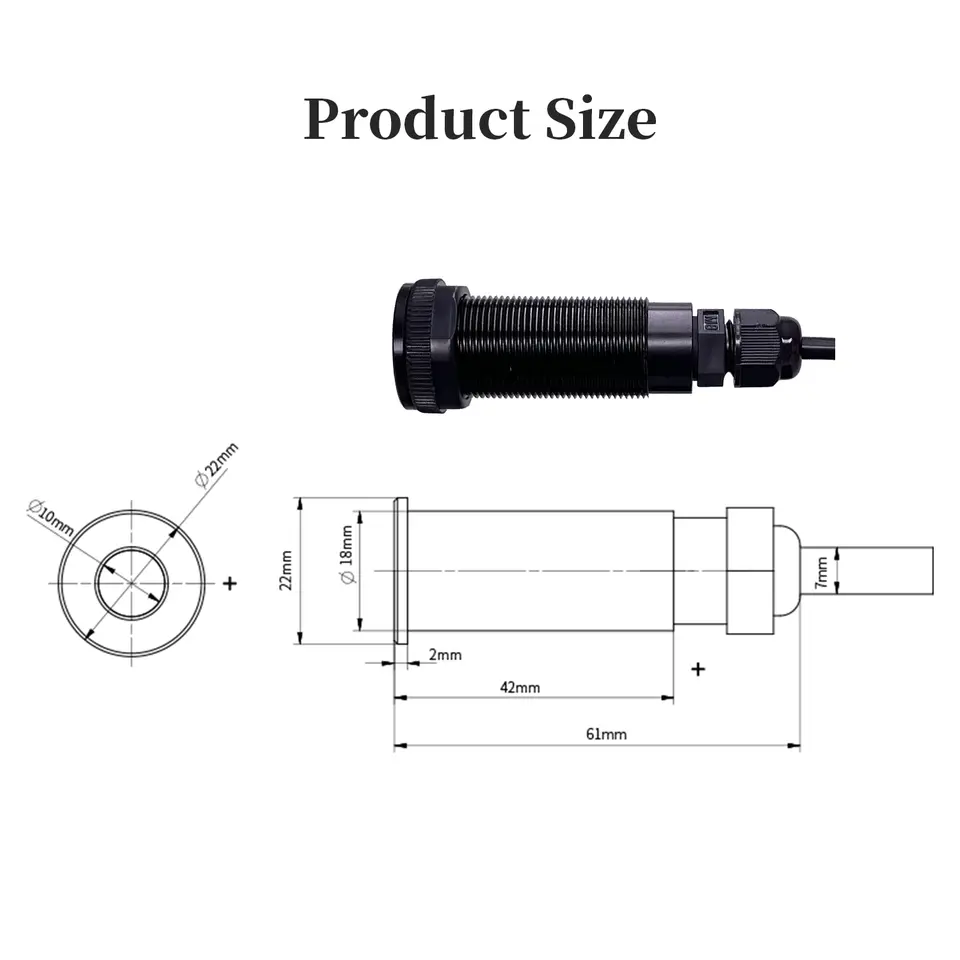

Size	61mm*22mm
Use	Tilt Angle Measurement
Origin	Mainland China
Output	Digital Output
Name	Laser distance measurement sensor
Brand	WitMotion
Manufacturer	WitMotion Shenzhen. Co.,Ltd
Interface	Serial TTL/ 485 /IIC
Baud Rate	2400-921600 optional 115200 default
Update Rate	0.1~20Hz default 20Hz
Working Temperature	-20~70℃
Weight	50g
SKU	AE-1005003096890173-12000057914269021

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

Time-of-flight laser distance sensor measuring up to 400cm, available with TTL serial or RS485 Modbus output.

WT53R Time-of-Flight (ToF) Laser Ranging Sensor Module, VL53L1X Distance 400cm, RS485 Modbus/TTL, TOF050F TOF200F
