ZS-X11H Brushless Motor Controller, 3-Phase, 6-60V, 400W, Hall Sensor

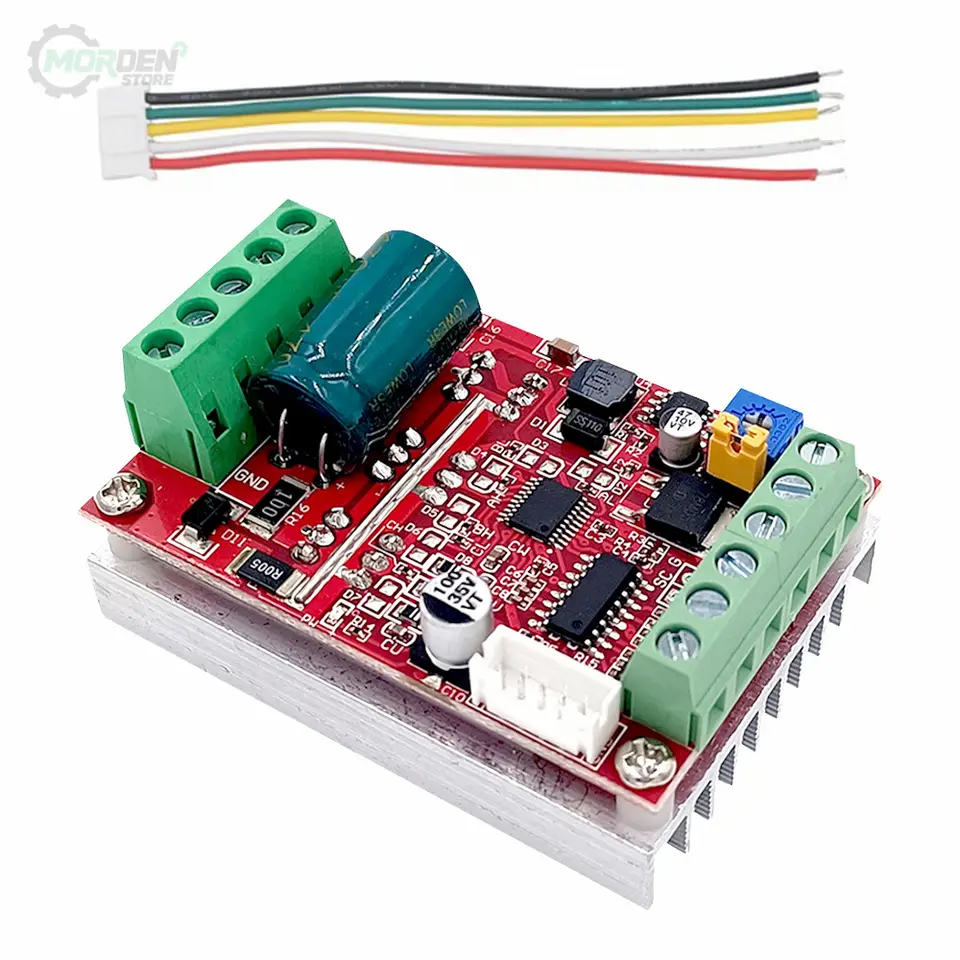

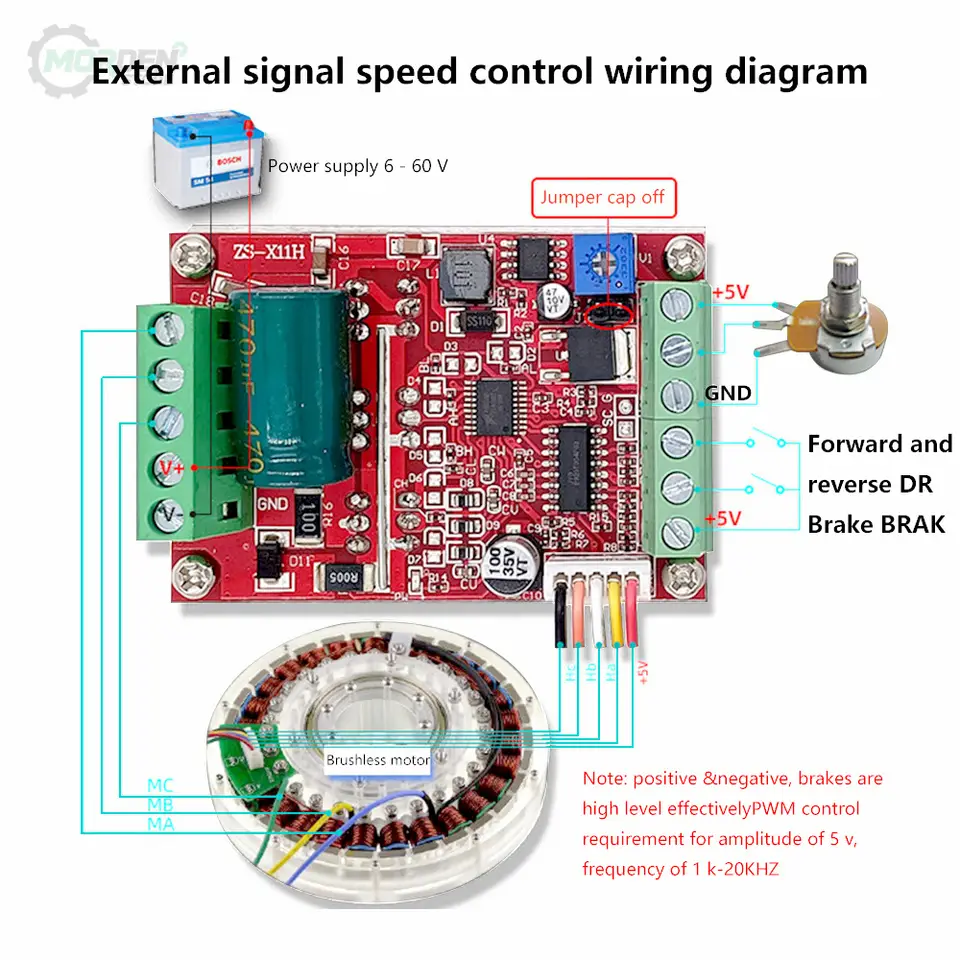

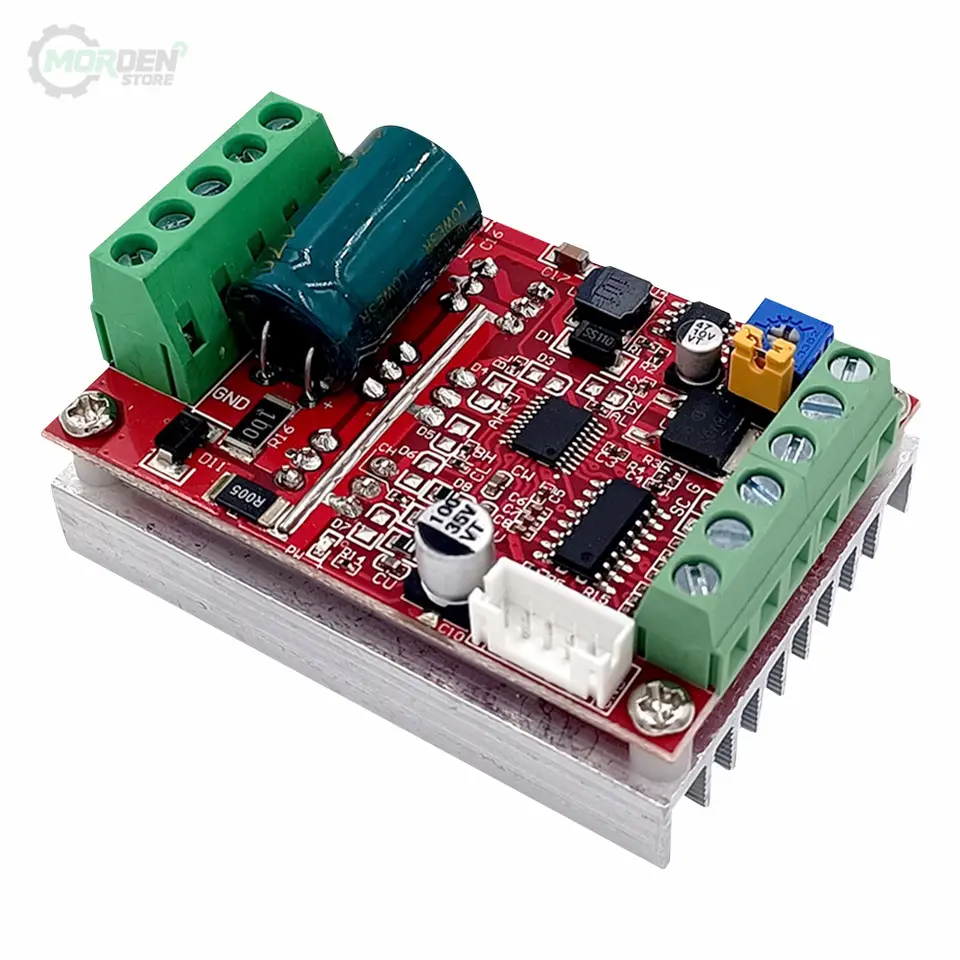

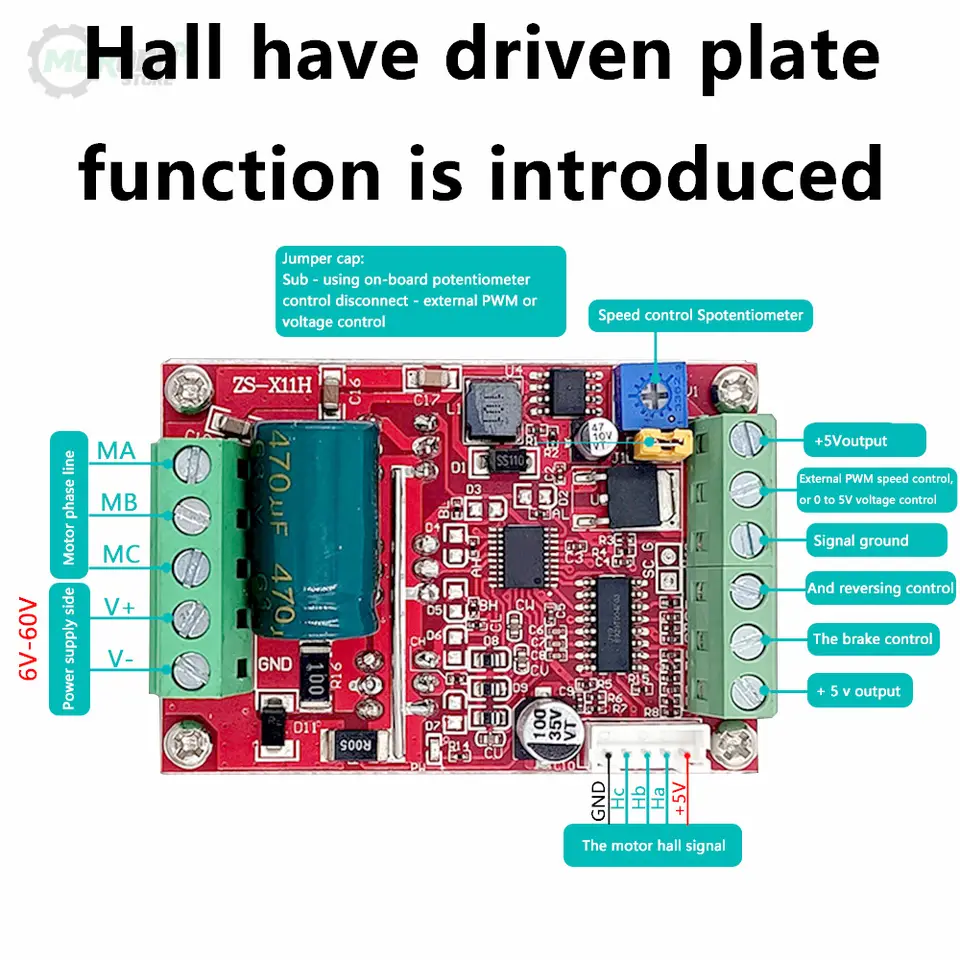

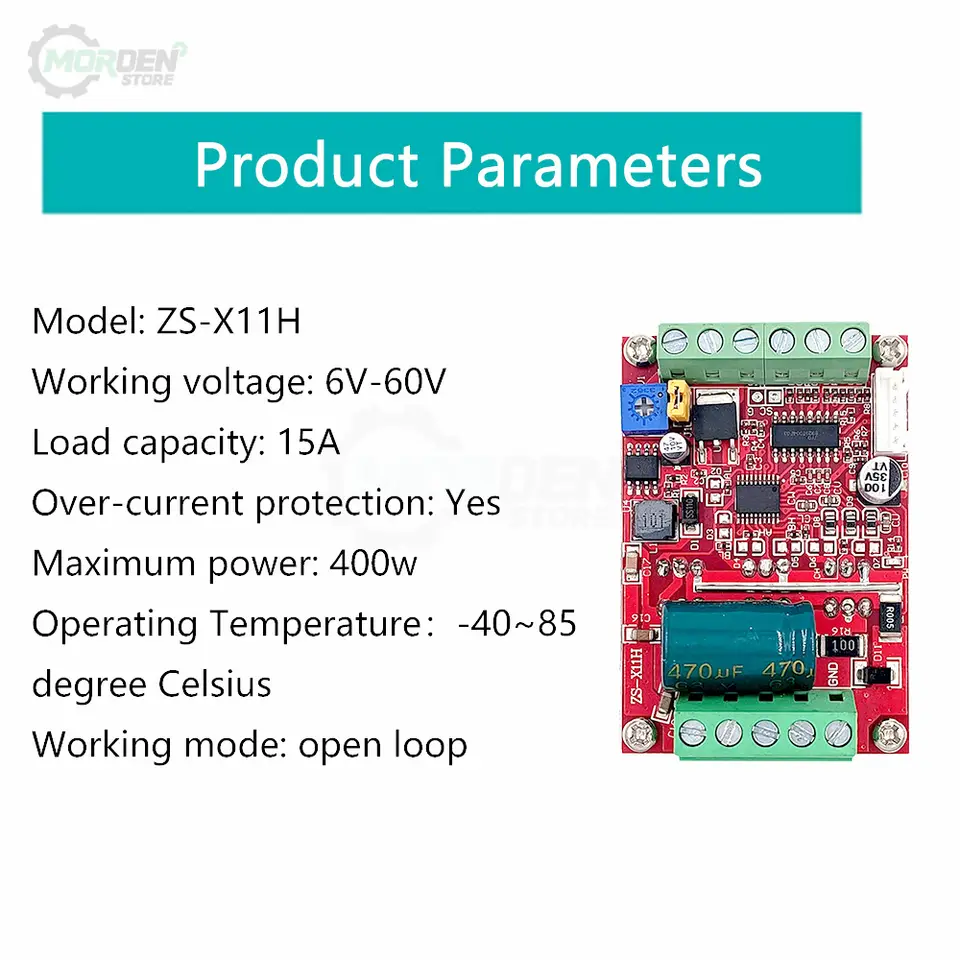

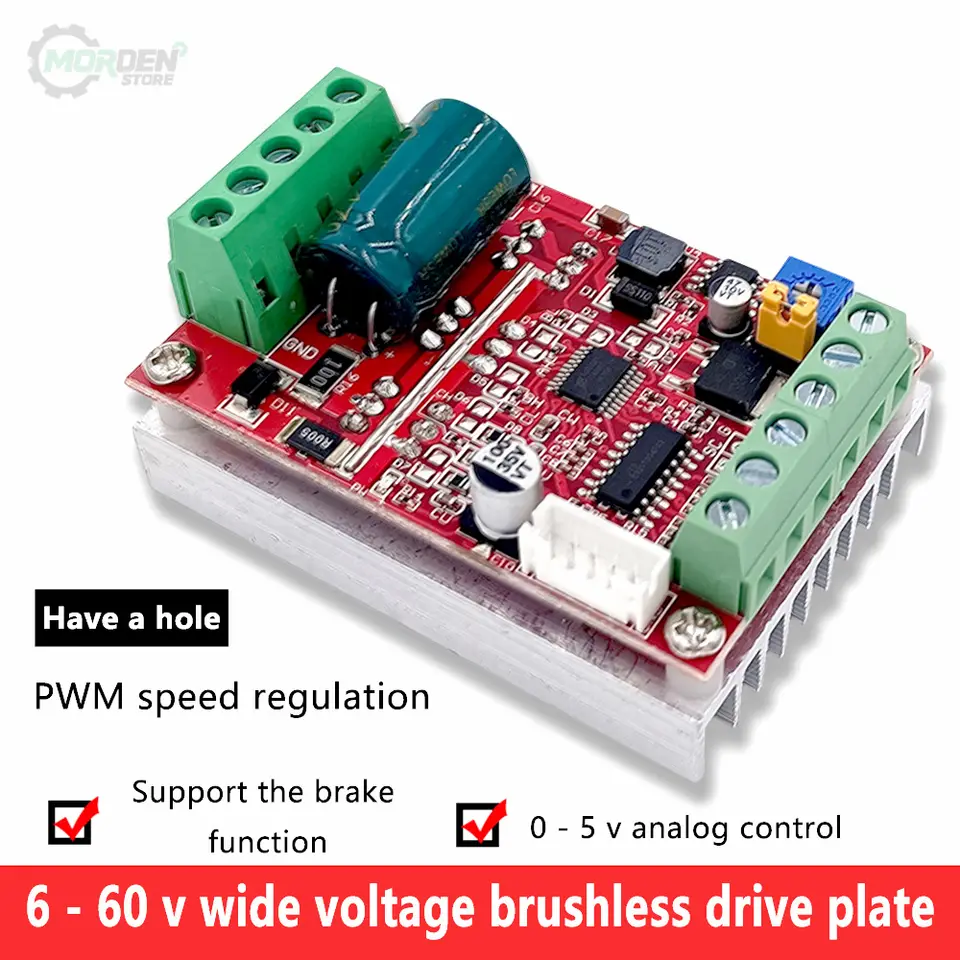

ZS-X11H 400W PWM 3 Phase DC 6-60V Brushless Motor Speed Controller Board PLC Motor Driver Hall 12V 24V 48V Single Capacitor Feature: 1. The product uses high-quality materials and the quality is guaranteed 2. The product performance is stable, the maximum power can reach 400W, and the service life is long 3. The product is suitable for vehicles, homes, industrial equipment, DIY enthusiasts, etc. 4. This is a Hall wide voltage brushless driver board that supports wide voltage DC6-60V, supports braking function, and 0-5V analog speed regulation. 5. With forward and reverse control function, PWM duty cycle control speed regulation Module introduction: This is a BLDC wide voltage DC6-60V, high power 400W three-phase brushless DC Hall motor controller. It has a new PLC, 0-5V analog control speed regulation and braking functions, forward and reverse control, and PWM duty. Ratio control speed regulation, the product is suitable for DC brushless Hall motors with an electrical angle of 120 degrees. Product parameters: Model: ZS-X11H Working voltage: 6V-60V Load capacity: 15A Overcurrent protection: Yes Maximum power: 400w Working environment temperature: -40~85 degrees Celsius Working method: open loop Precautions: 1. There is no fuse in the power supply circuit on the motherboard. Jianyi added it himself. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some chips on the board (even if it takes 2 seconds). 2. The motor output end has over-current protection during normal operation. Since the power and current of the module are very large, please do not artificially short-circuit the module when it is not working normally. Once the short-circuit occurs, there is a possibility of burning the line and exploding the pipe. Please do a wiring test for the first time. Use small current and low voltage to test. After it is ok, then apply high current and high voltage. Since it is a bare board module, please pay attention to the insulation of the wiring ends when selling it. It is strictly forbidden to touch the components on the board with strong voltage. 3. Do not connect a motor that obviously does not match or is far different from the voltage, current and power of the drive module to avoid damage. 4. Check the wiring carefully before turning on the power. If the connection is reversed or the Hall wire is wrongly connected, a large instantaneous current may burn out the driver board. 5. The motor cannot start normally or is difficult to start (sometimes it requires manually turning the motor to start), or the wiring phase may be wrong. Please cut off the power immediately, otherwise, it is easy to damage the drive instantly. Package list: Motor controller X1 5PIN Cable X1
